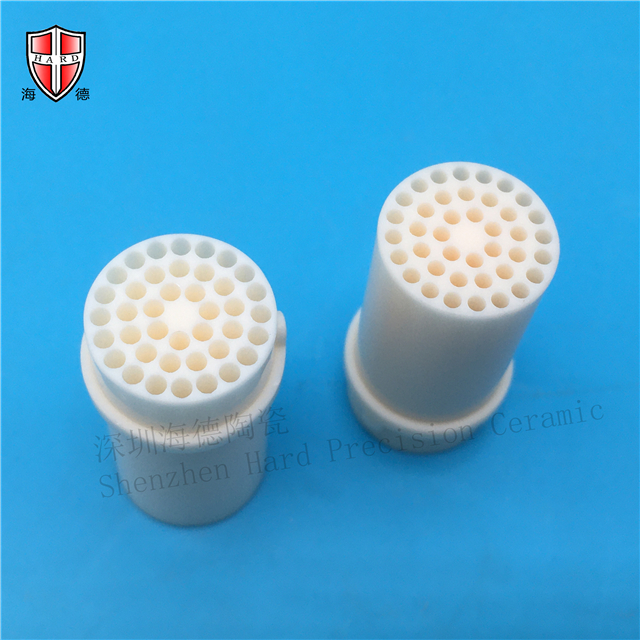

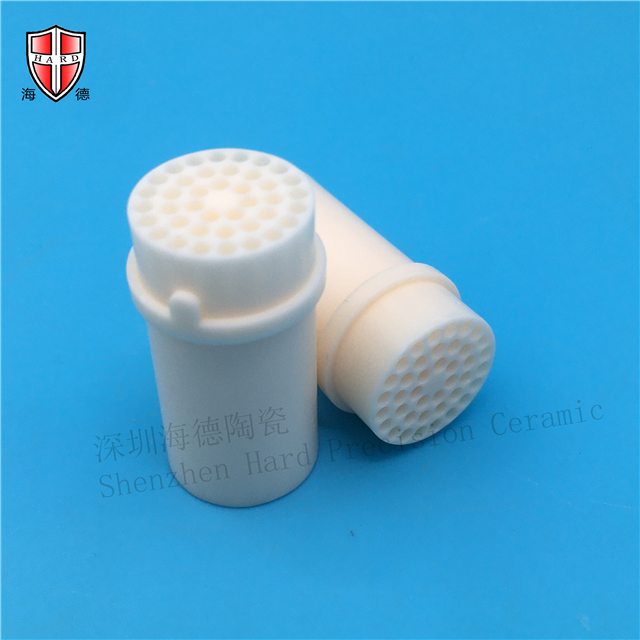

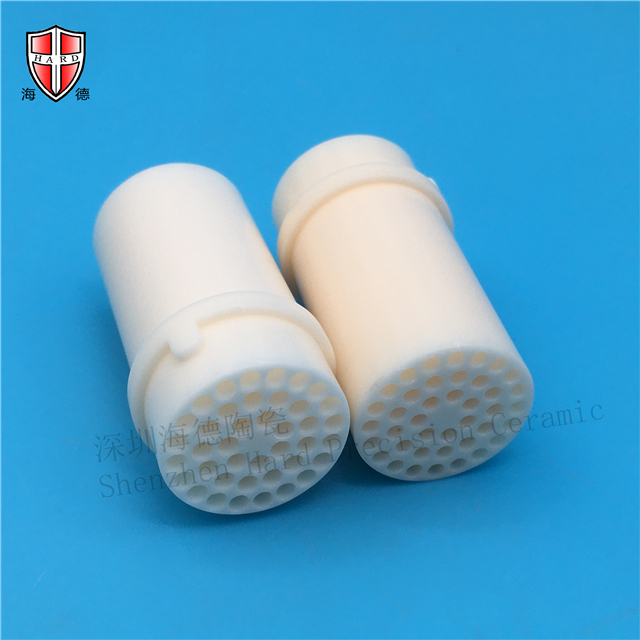

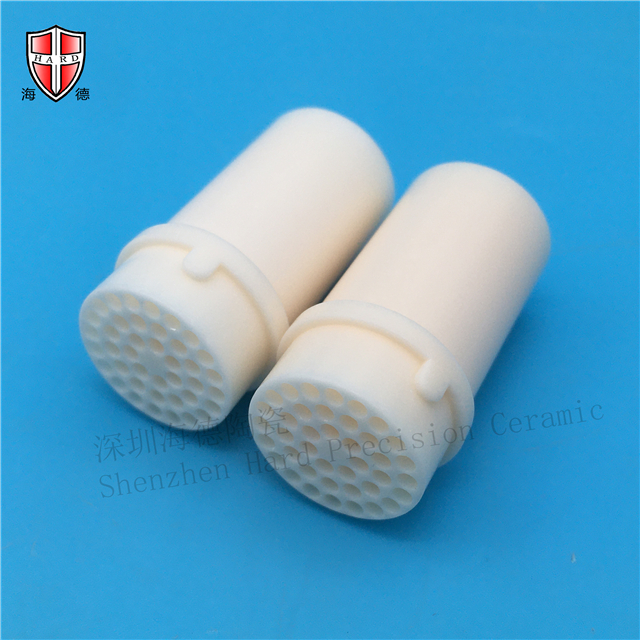

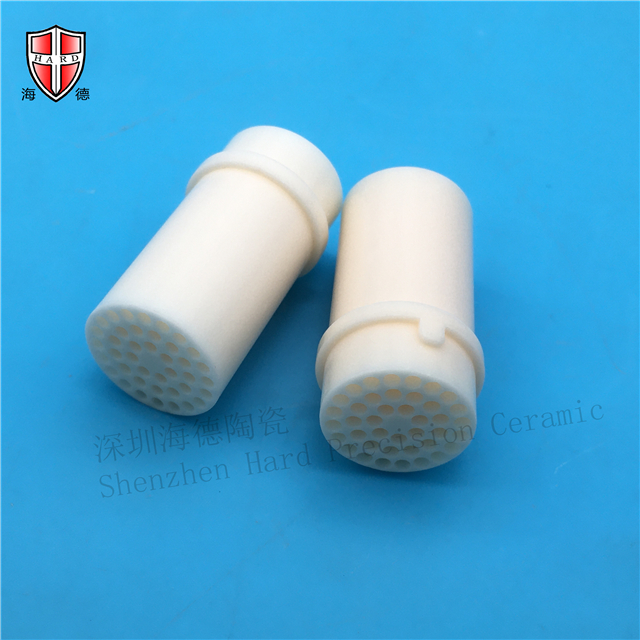

Design FeaturesPorous precision alumina ceramic filter cartridges, also known as ceramic honeycomb plungers, are made of high-performance alumina (Al2O3) ceramic and

possess the following significant characteristics:

High Mechanical Strength and Wear Resistance

Alumina has a Vickers hardness of 15.7 GPa and a flexural strength of up to 330 MPa, ensuring durability and stability under high loads.

Excellent Heat Resistance and Chemical Stability

With a maximum operating temperature of 1650°C and good chemical inertness, it is suitable for use in high-temperature and corrosive environments.

High-Efficiency Filtration Performance

The porous structure design increases the surface area of the filter media, improving filtration efficiency while reducing pressure loss and optimizing

hydrodynamic performance.

Excellent Thermal and Electrical Insulation

With a thermal conductivity of 27.5 W/(m.K) and a breakdown strength higher than 10 KV/mm, it is suitable for applications requiring insulation.

Customizable Design

The shape and size can be customized to meet specific application requirements, adapting to the needs of various filtration systems and devices.

Application areas

Porous precision alumina ceramic filter elements play a vital role in several key areas:

Chemical Processing

Used in chemical plants to filter corrosive chemicals, improving production safety and product purity.

Biotechnology

Used in bioreactors to ensure the purification of culture media and biological products, suitable for pharmaceutical and biological research.

Flue Gas Purification

Used in environmental protection equipment to filter harmful gases and particulate matter, helping to reduce the environmental impact of industrial emissions.

Food and Beverage Industry

Filtering food or liquids during production processes to ensure product safety and cleanliness.

Porous precision alumina ceramic filter elements play a crucial role in modern industrial processes due to their high filtration efficiency and stability under

extreme conditions. These filter elements are designed with mechanical strength, heat resistance, chemical stability, and filtration efficiency in mind, ensuring

reliability in high-temperature, high-pressure, and corrosive environments. Customized designs and sizing adaptability allow them to meet the needs of a wide

range of industrial applications, providing an efficient and economical solution to complex and demanding industrial challenges.

In the field of precision ceramic machining and customization, our company is committed to producing various high-performance ceramic components,

including zirconia ceramics, silicon nitride, and aluminum nitride. These ceramic components possess excellent thermal stability, electrical insulation,

high-temperature stability, and wear resistance, and are widely used in key fields such as aerospace, electronics, machinery, military, and automotive.

Our products, with their superior performance and reliability, provide crucial support and assurance to our customers, helping them improve production

efficiency and optimize product performance.
