Design Features

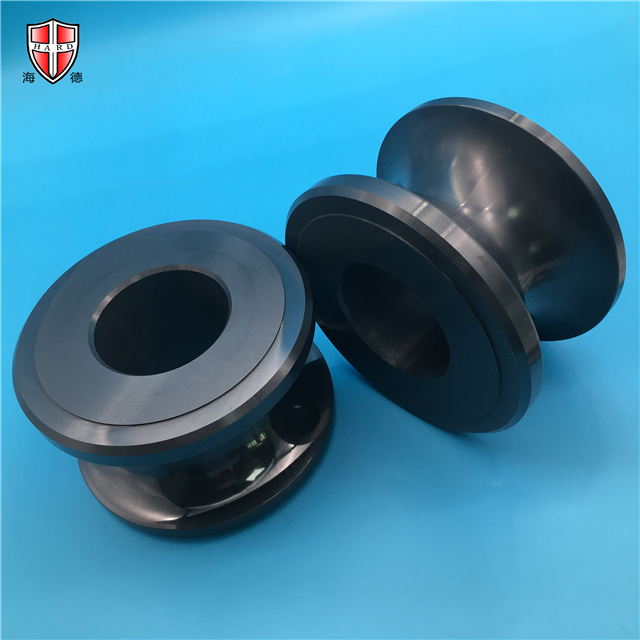

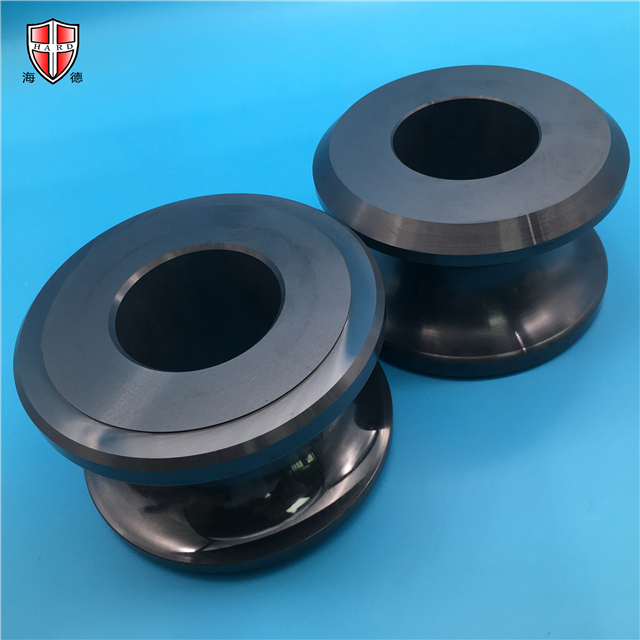

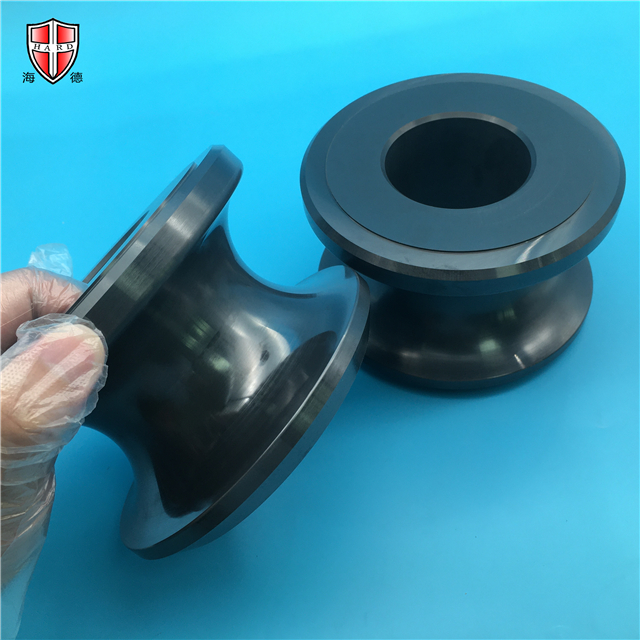

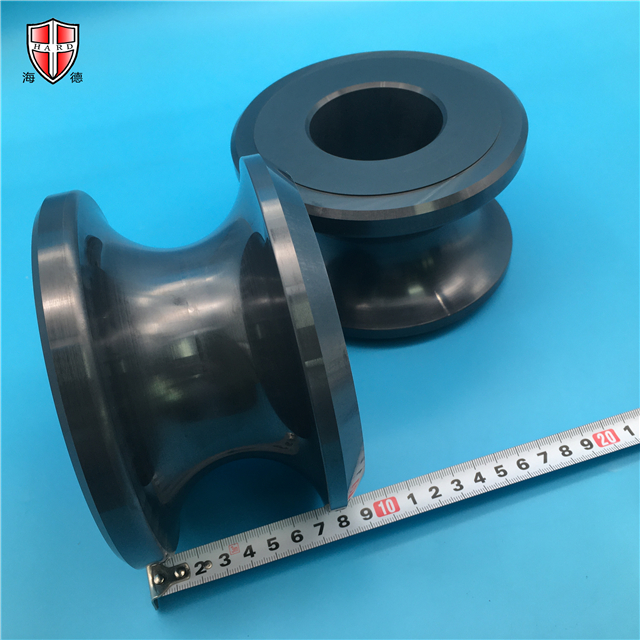

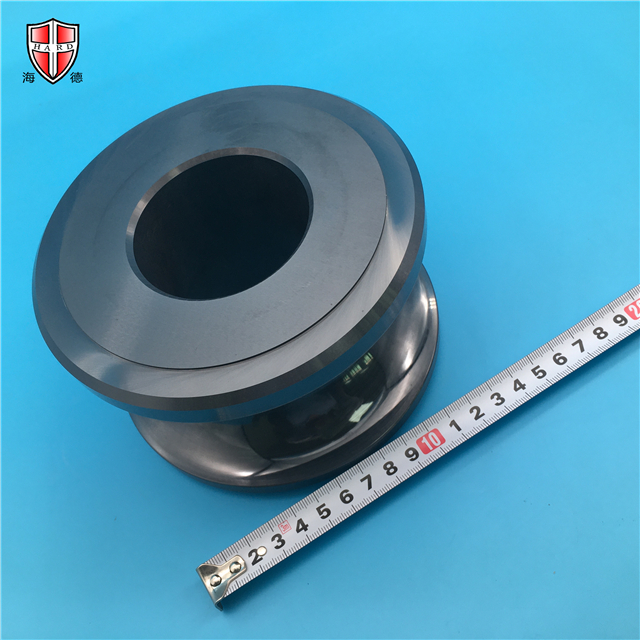

Silicon nitride ceramic welding rolls, also known as aluminum tube welding ceramic rolls, utilize the unique properties of silicon nitride

material to meet the requirements of high-temperature welding processes.

High Abrasion and Heat Resistance

Silicon nitride boasts a Vickers hardness of up to 1500 HV and a maximum operating temperature of 1200℃, enabling the welding rollers to

 perform exceptionally well under continuous high-temperature operation, making them suitable for metal processing applications, especially

aluminum tube welding.

Excellent Mechanical Strength

Silicon nitride possesses an elastic modulus of 290 GPa and a flexural strength of 600 MPa, ensuring the welding rollers maintain stability and

durability under high pressure.

Thermal Shock Resistance and Low Coefficient of Thermal Expansion

With a thermal shock stability coefficient of 500℃ and a coefficient of thermal expansion of 3.1 × 10⁻⁶/℃, the rollers ensure dimensional

stability and performance consistency in environments with large temperature variations.

Smooth Surface Treatment

The welding rollers feature a highly smooth surface treatment, which helps reduce surface damage to metal sheets or tubes during welding

and improves work efficiency.

Application areas

Silicon nitride ceramic welding rollers play a key role in several important industrial sectors:

Metalworking Industry

Especially in applications such as aluminum tube welding, these welding rollers are used for conveying and supporting tubular or sheet metal,

and they must withstand continuous high pressure and high temperature.

Aerospace and Automotive Manufacturing

In the aerospace and automotive industries, these welding rollers are used to manufacture parts and assemblies where extremely high

precision and durability are required.

Electronic Equipment

In the electronics industry, particularly in the manufacture of components operating at high temperatures, silicon nitride welding rollers

provide the necessary heat resistance and stability.

Industrial Machinery and Equipment

In high-load and high-temperature industrial applications, such as heavy machinery and production lines, welding rollers help improve

production efficiency and reduce maintenance costs.

Silicon nitride ceramic welding rollers offer superior performance in high-temperature and high-load industrial applications due to their

excellent heat resistance, mechanical strength, and wear resistance. These welding rollers not only improve welding quality and efficiency

but also reduce maintenance requirements and operating costs, ensuring long-term stable operation. Their design and material optimization

make silicon nitride welding rollers ideal for metal processing and other demanding applications, especially in advanced manufacturing

sectors that prioritize high performance and reliability.

In the field of precision ceramic machining and customization, our company is dedicated to producing various high-performance ceramic

components, including zirconia ceramics, silicon nitride, and aluminum nitride. These ceramic components possess excellent thermal stability,

electrical insulation, high-temperature stability, and wear resistance, and are widely used in critical fields such as aerospace, electronics,

machinery, military, and automotive. Our products, with their superior performance and reliability, provide crucial support and assurance to

customers, helping them improve production efficiency and optimize product performance.
