Os substratos de espelho cerâmico de alta precisão oferecem a escolha industrial para precisão e qualidade.

2026-05-26

Por que escolher substratos de espelho de cerâmica de precisão?

1. Rugosidade superficial extremamente baixa

Alcançando a Ra de
0.02μm for a super-mirror finish

Garantir a qualidade de processamento de semicondutores, componentes ópticos e dispositivos eletrônicos de precisão

Reduzir os riscos de processamento e montagem subsequentes

2. Flacidez ultra-alta

Nivelamento máximo até
0.001mm

A precisão depende da dimensão e pode ser personalizada para os requisitos do cliente.

Garantindo alta consistência entre wafers, substratos ópticos e componentes eletrônicos.

3. Propriedades físicas estáveis

Cerâmica de alumínio:
Alta relação custo-benefício, resistente ao desgaste e resistente à corrosão, adequado para uma variedade de aplicações industriais.

ceramic shim.JPG

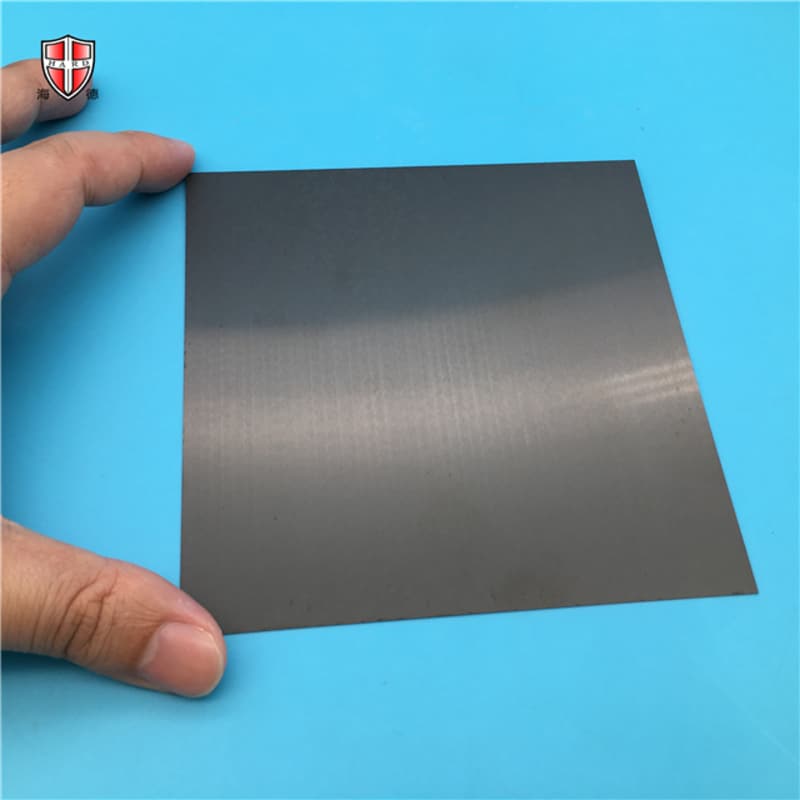

Cerâmicas de nitreto de silício:
Alta estabilidade térmica, alta resistência e alta tenacidade, adequados para processamento de alta carga.

Si3N4 chip.jpg

Cerâmicas de nitreto de alumínio:
Alta condutividade térmica e excelente isolamento, adequado para as indústrias de eletrônica e semicondutores.

aluminum nitride substrate.jpg

4. Capacidades de usinagem de alta precisão

Tamanhos e espessuras personalizados suportados

Retificação de precisão integrada e polimento de espelho

Controle de tolerância rigoroso para atender aos requisitos de aplicação em nível de mícron

2. Áreas de aplicação

Os substratos de espelho cerâmico de alta precisão são amplamente utilizados em:

Suportes de bolachas semicondutoras e suportes de precisão

Vidro óptico, safira e substratos de lentes

Dispositivos e sensores eletrônicos de precisão

Componentes de dispositivos médicos de última geração

Equipamentos a laser e optoelectrónicos

Nova indústria electrónica energética

3. Vantagens da usinagem de precisão

Característica	Capacidades de processo	Valor do cliente
Superfície espelhada (mais alta)	Ra0,02µm	Melhore o desempenho de processamento óptico / eletrônico
Flatness (maior)	0,001Mm	Garanta uma montagem de alta consistência e precisão
Diversidade material	Al2O3, Si3N4, AlN, etc.	Para atender a diferentes requisitos de condutividade térmica, mecânica e térmica
Tamanhos personalizados	Múltiplas espessuras disponíveis	A produção personalizada está disponível com base em desenhos.
Estabilidade	Alta temperatura / alta carga / uso a longo prazo	Prolongar a vida útil do substrato

Nota: A precisão está relacionada à estrutura e tamanho, e pode ser personalizada de acordo com os desenhos do cliente e requisitos técnicos.

4. Por que os substratos de espelho de cerâmica da Hyde são confiáveis?

Mais de 20 anos de experiência em usinagem de cerâmica de precisão

Processos avançados de retificação e polimento de espelhos

Gerenciamento dimensional e de tolerância rigoroso

Protótipos em pequenos lotes e produção em massa disponíveis

Personalização OEM / ODM suportada

Seja nas indústrias de semicondutores, óptica, eletrônica ou médica, nossos substratos de espelho cerâmico podem atender aos rigorosos requisitos de alta precisão, alta planicidade,

E alta estabilidade.

Contacte-nos

Se você está procurando
high-precision ceramic mirror substrates, please contact us and submit your drawings or specifications. We will provide:

Soluções de material personalizadas

Avaliação da tecnologia de usinagem de precisão

Produção de amostras e serviços de produção em massa

Fornecendo suporte de material de núcleo confiável e de alta qualidade para seus projetos de fabricação de ponta.
